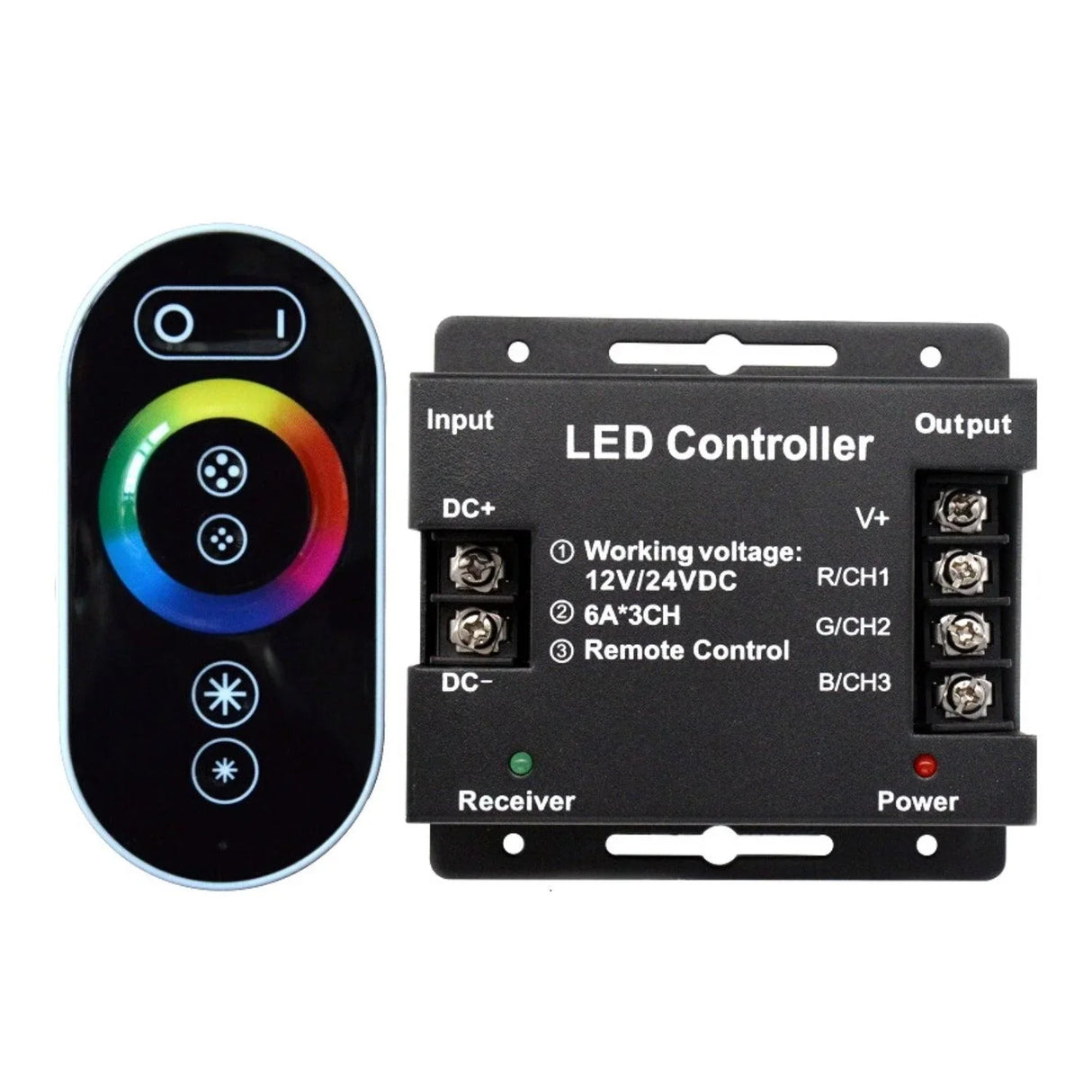

12V/24V RGB LED Strip Controller with Touch RF Remote 18A 3 Channel

Features:

  • 12V 24V
  • RGB RF Controller
  • 6Ax3CH 18A Max
  • 3 year warranty
SKU: RGBRFC12V24V-18A
£28.85
Tax included Shipping calculated at checkout.

Shipping & Return

Shipping Policy

We offer FREE economy 3-4 day delivery on all orders with no minimum order quantity. The Free Delivery is only in Mainland UK. If ordered before 1 pm, Monday - Friday, your order will be despatched the same day unless otherwise stated*. Items are not despatched on weekends. We know getting your items delivered safely and on time is critical. That’s why we’ve selected DPD for next day delivery.

Free Delivery Orders with an order value of less £99 are shipped via Evri.

We offer Next Day Delivery via DPD for orders value £99 & above. If you place your order before 1300 then your order will be delivered Next Day. We also offer Saturday Delivery as well.

International Shipping

We now ship worldwide from the UK. All international orders will be sent by a trackable method with DPD, Royal Mail and ParcelForce. We delivery to most countries in Europe, Asia, Middle East, North & South America. Please see the checkout page for an accurate quote for your country.

Return Policy

We offer a 15 day, no-quibble returns or replacement policy, because we want you to be totally satisfied with your purchase. If you're unhappy in any way with your purchase, you can return it for a refund or a replacement, as long as you return it in the same condition as it arrived (original/undamaged packaging and product) and within 15 days of receiving it. We will pay for your return postage on a faulty item as long as you send it using Hermes or Royal Mail 2nd class recorded delivery and within 14 days of receiving it.

All products available in variable lengths are cut and customized from 30-metre or 50-metre rolls according to your specific requirements. Only a limited number of items are pre-made.

Since our made-to-measure items, such as LED Strip Lights or Neon Flex Lights, are customized specifically for you, they cannot be cancelled or returned. Please ensure your order details are correct before placing it, as these items are considered special orders and are non-refundable once processed.

However, if you purchase a full 50-metre roll, you may return it for a full refund, provided it is unused, in its original condition, and in the original packaging.

Certain items are excluded from our returns and refund policy, including goods that are made to measure, cut, or mixed according to your requirements. Orders with different cutting lengths, or any order over £50 in value, are classified as custom and therefore do not qualify for a refund or return if there is no fault with the product. These orders require significant time and effort to prepare.

All the accessories such as power supplies, power adapters, controllers, drivers and profiles are returnable.

Please note that any amendments done to the lights voids the warranty on the product, this also includes taking the plug of the AC 220V 240V strip or neon light.

If you are unclear about anything please email us at sales@ukledlights.co.uk or give us a call at 01952370008.

Description

Rainbow Touch RGB Controller adopts the advanced micro control unit; it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time, it has many advantages such as convenient connection, simplicity to use and others. According to the actual need of customers, it can carry out jumpy changing, gradual changing, strobe flash and other effects of change.

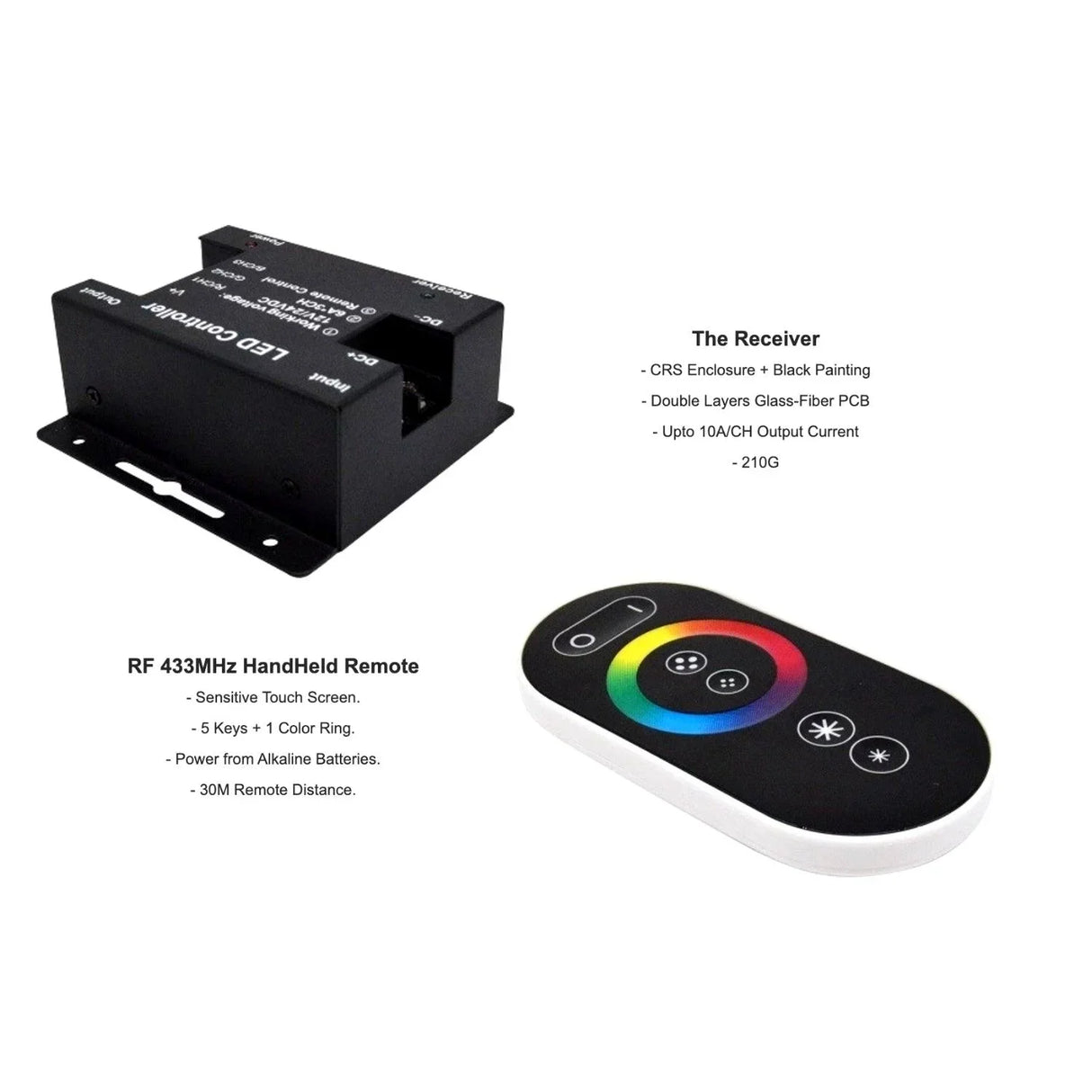

  • RF TECHNOLOGY: This device adopts the advanced micro control unit and Radio Frequency technology. The signal can penetrate objects of a certain thickness. The controller features no directionality or line of sight to receive a signal from the remote.
  • PWM TECHNOLOGY: Adopts advanced PWM technology, capable of controlling various kinds of LED appliances that have the RGB colouring changing feature. For example: RGB 5050 3528 LED strip, automotive LED lighting, LED modules, LED strings and so on.
  • TouchPad Controller: Rainbow Touch RGB Controller adopts the advanced micro control unit; it is used for controlling a variety of lamp whose source of light is LED
  • Output Current: 6A/CH, Total max 18A with Dimming range: 0-100%

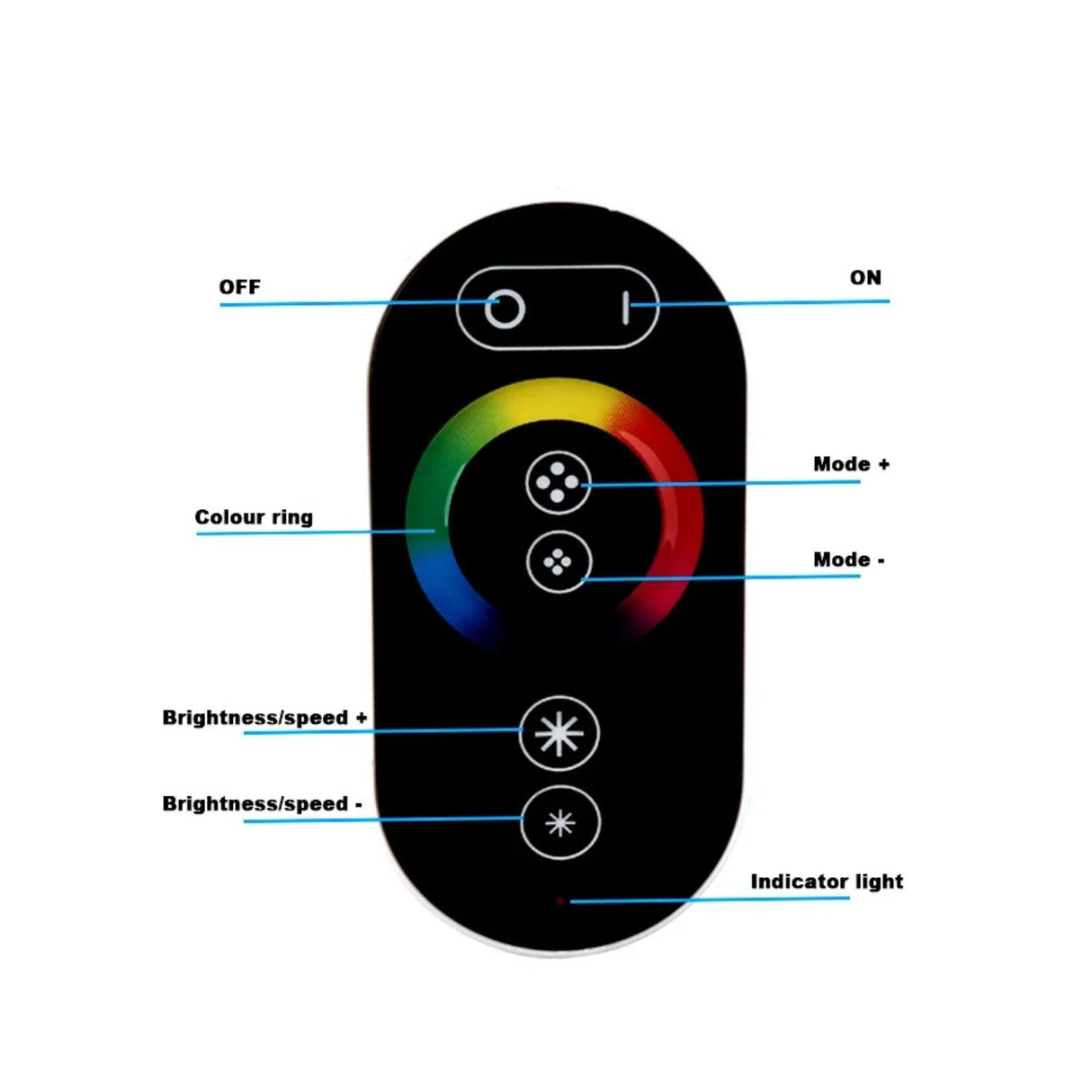

Remote Operation Instruction

  • The RF remote touch RGB controller has 4 modes in total and can change its mode by touching the ON key.
  • Static colour mode, both colour and brightness are adjustable
  • Gradual change mode, both speed and brightness are adjustable
  • Hopping change mode, both speed and brightness are adjustable
  • White light mode, only brightness can be adjustable

Important – Please Note:
The input voltage of remote control must be the same as RGB strips.

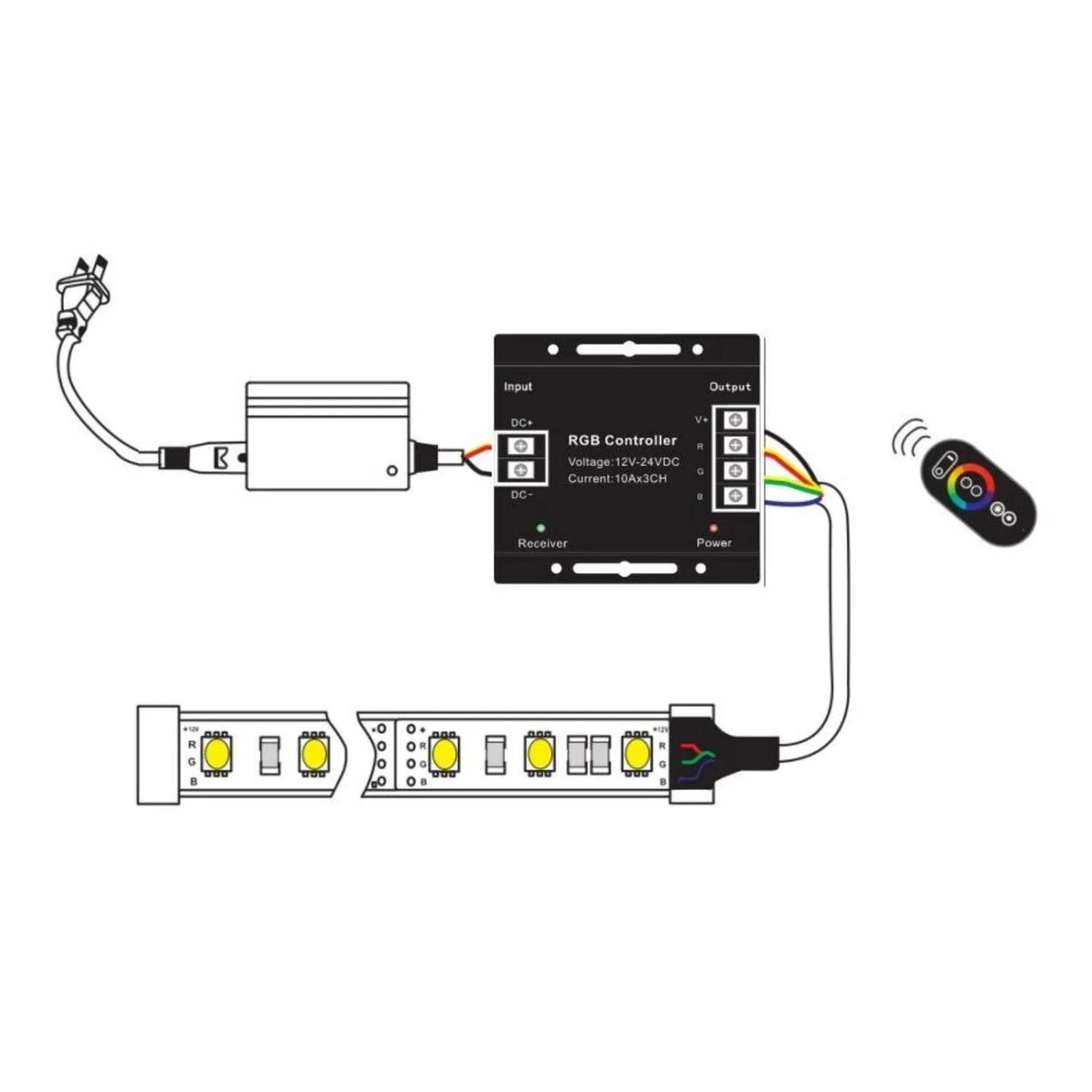

When the colour doesn’t match, for example, it displays blue when touching green, or displays green when touching blue, please check whether the wiring is correct. If not, exchange blue and Green into their right connections.

Package includes
1 x LED Controller
1 x RGB Remote
1 x User Manual

Note:
The input voltage of remote control must be the same as RGB strips. When the colour doesn’t match, for example, it displays blue when touching green, or displays green when touching blue, please check whether the wiring is correct. If not, exchange blue and Green into their right connections.

Product Specification:

  • Working temperature: -30-45 ℃
  • Supply voltage: DC12V-DC24V
  • Output: 3 channels
  • Connecting mode: common anode
  • Transmission/Receiving frequency: 433.92 Mhz

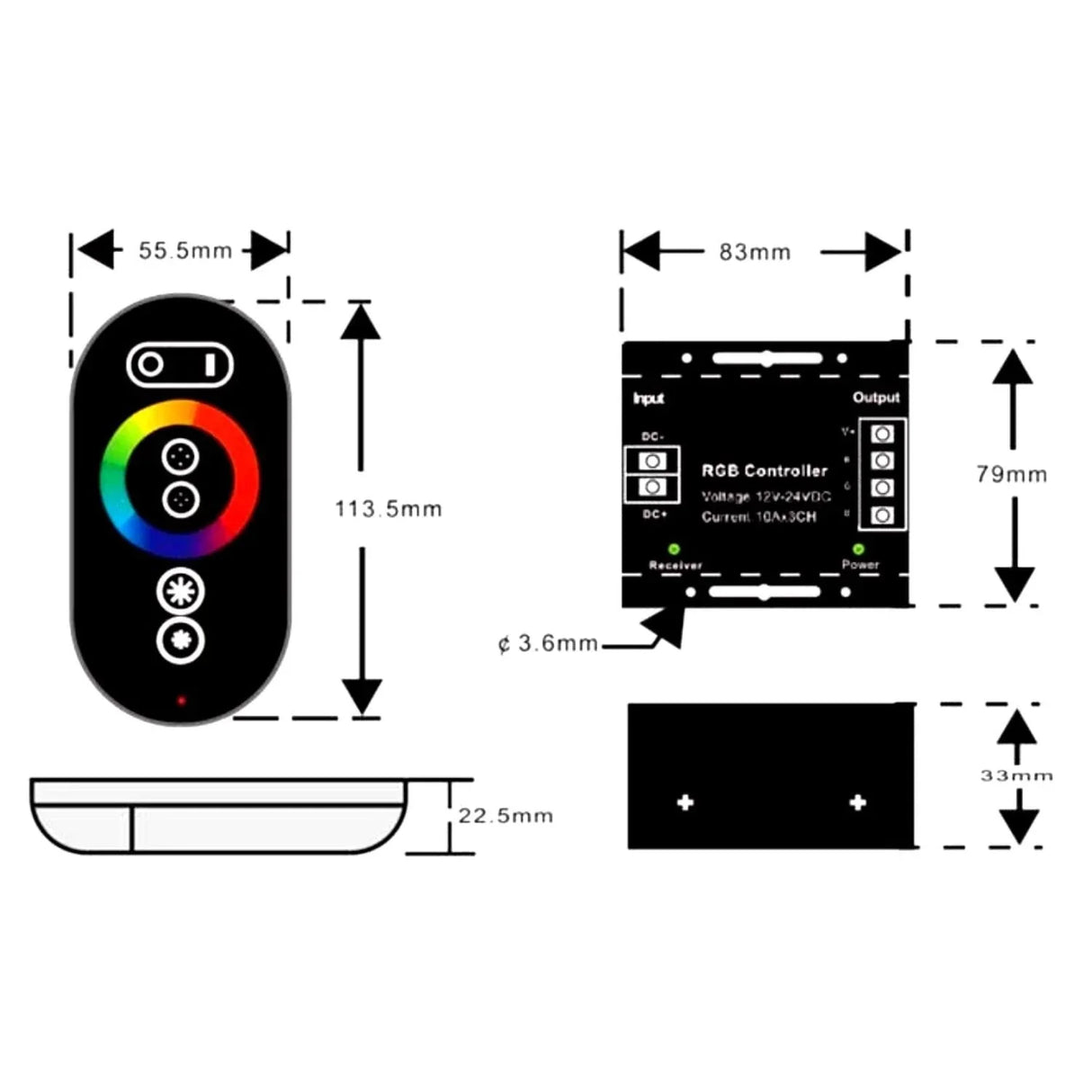

  • External dimension: L86.5 x W55.6 x H22.8 mm
  • Colour Mode: 18 Mode
  • Output power: <216W/432W
  • Loadable Current: 6Ax3CH 18A Max
  • Control Mode: Touchable/RF Remote Control

Specifications

  • Brand
    ATOM LED
  • Product Type
    12V 24V RGB Controller
  • Colour
    Black
  • IP Rating
    IP40
  • Voltage
    12V - 24V
  • Dimensions
    86.5 x 55.6 x 22.8 mm
  • Operating Tempreature
    -30-45 ℃
  • Average LED Life Hours
    50,000
  • Certification
    UKCA, CE, RoHS
  • Gurantee
    3 years
  • Output
    6Ax3CH 18A Max
